Autel EVO MAX 4T Retrofit Kit
What's in the box
The Skycharge Retrofit Kit enables fully automated docking and charging of the Autel EVO MAX 4T drone.
Engineered for seamless integration, the kit provides reverse current protection and supports automatic charging upon landing (when properly configured). A compatible Skycharge docking station is required for operation.
Maintains Drone Warranty
The Retrofit Kit installs without modifying the drone, ensuring the original warranty remains intact. Installation takes less than a minute—just attach the kit and start remote operations using your preferred mission planner.

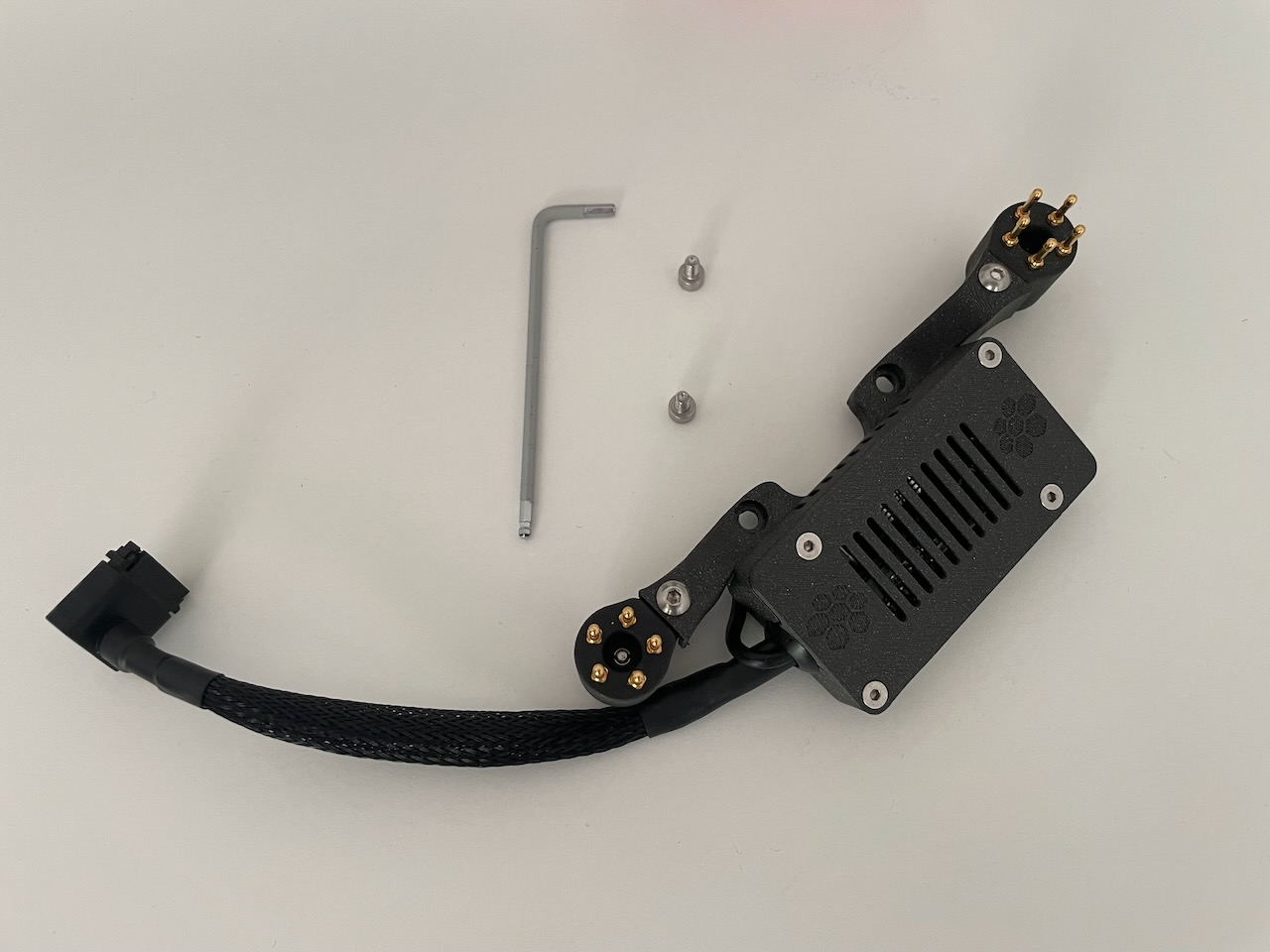

Figure 1 - Autel EVO MAX 4T Retrofit-Kit
1. Install the Retrofit Kit
Position the Retrofit Kit on the drone body and secure it using the screws, as illustrated in Figures 2.1 and 2.2. Finally, connect the cable to the rear charging port.t

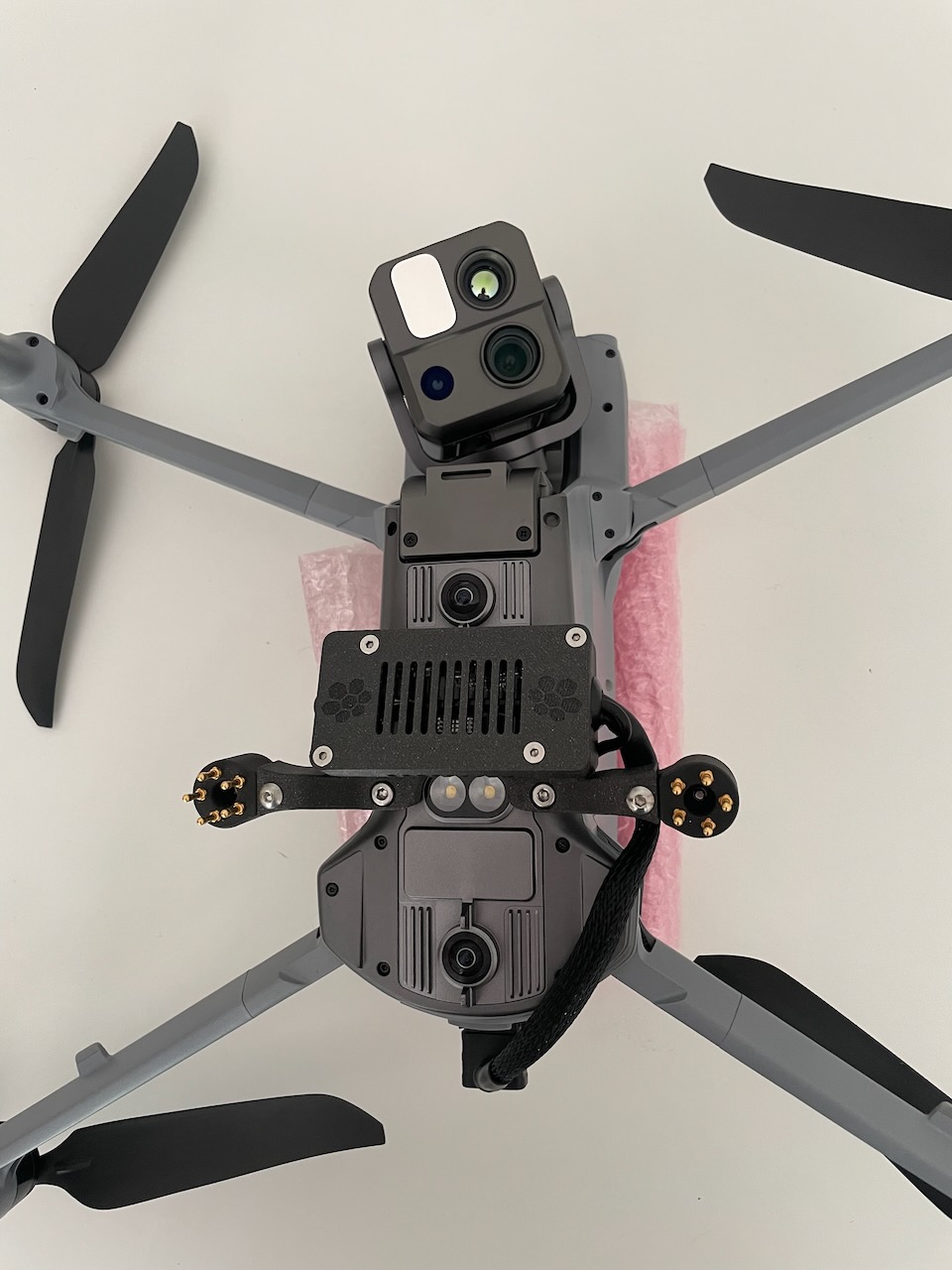

Figure 2.1

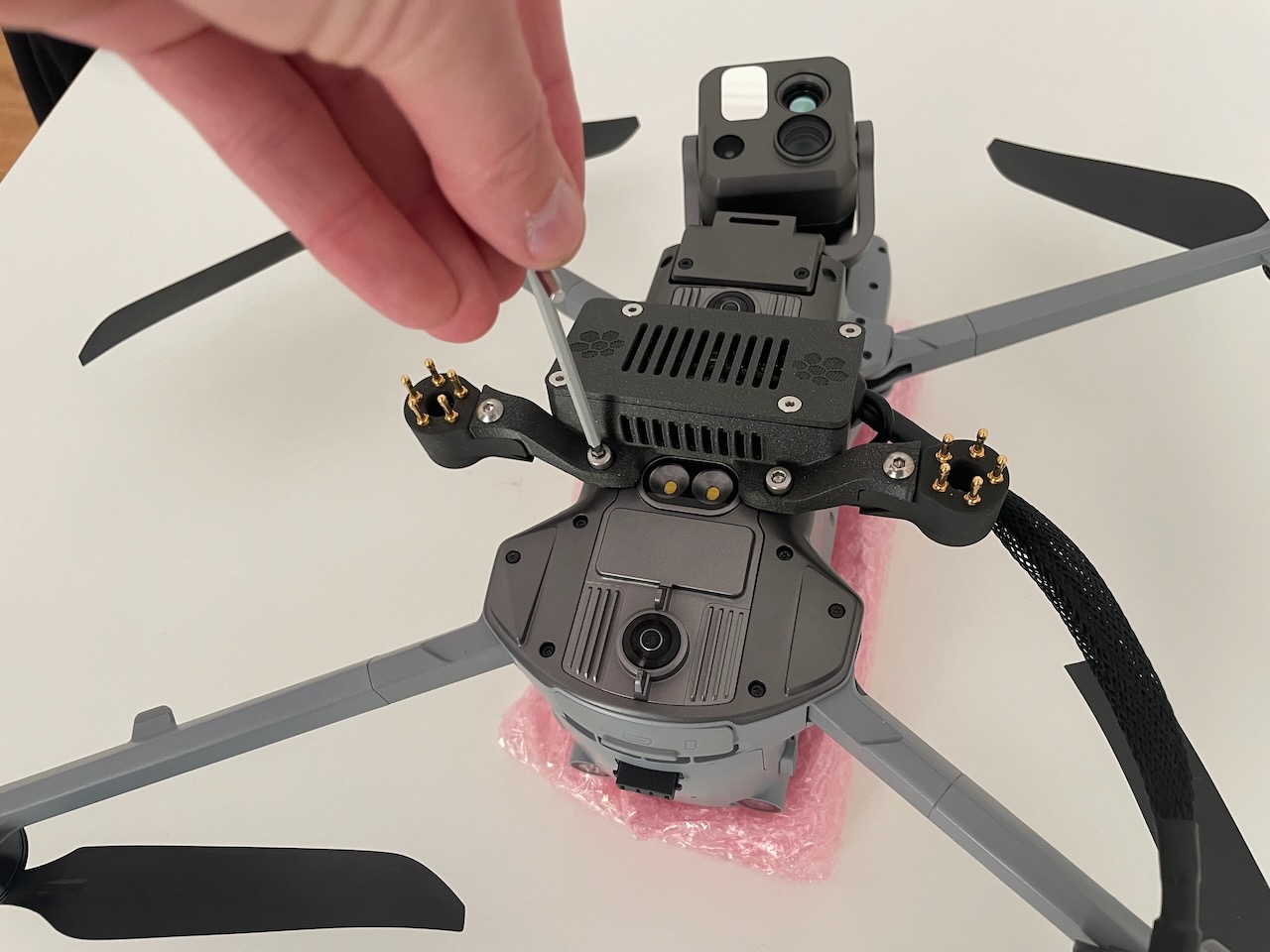

Figure 2.2
2. Verify Proper Installation

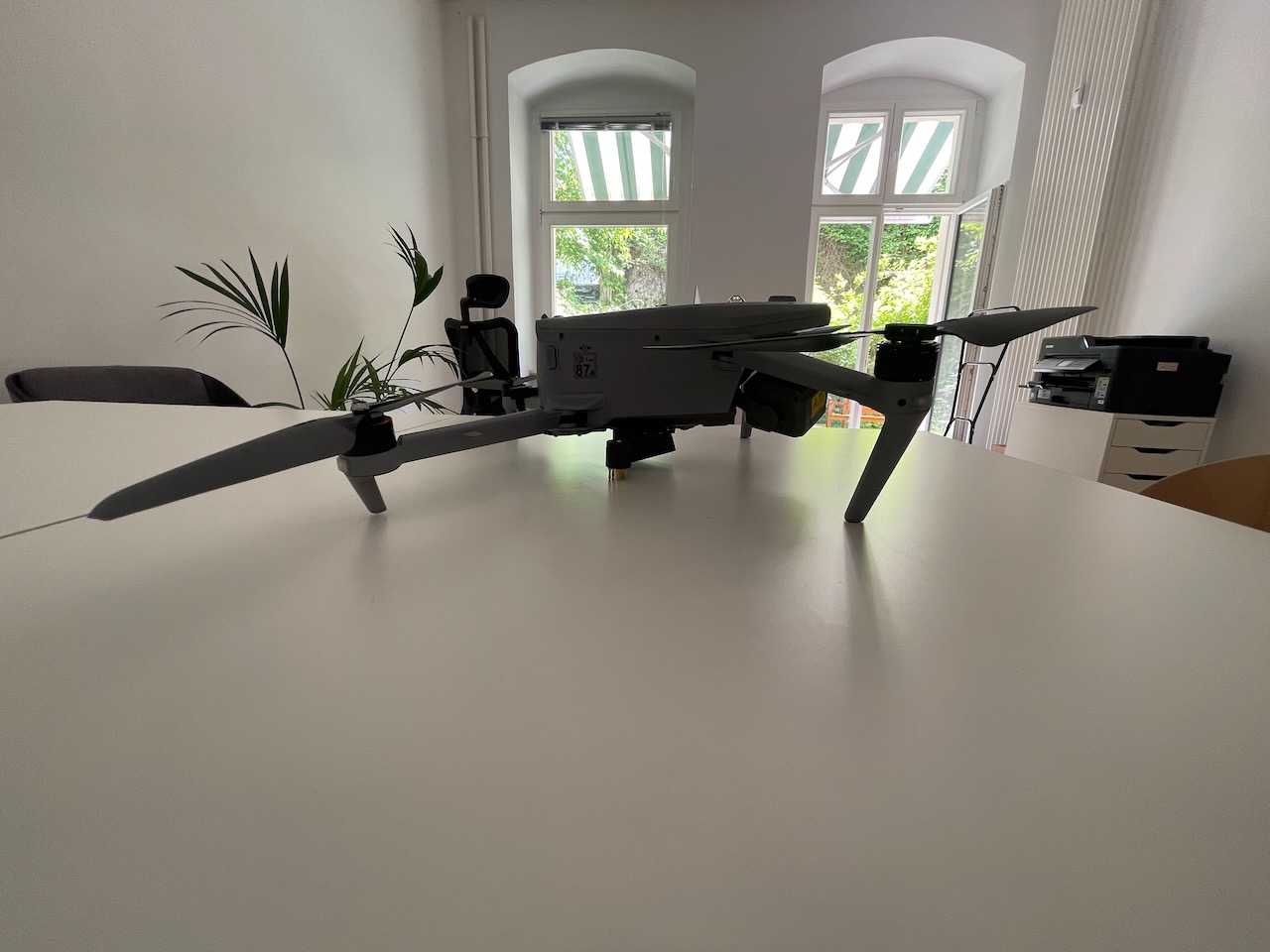

Figure 3.1 - Side view of the installed Retrofit Kit

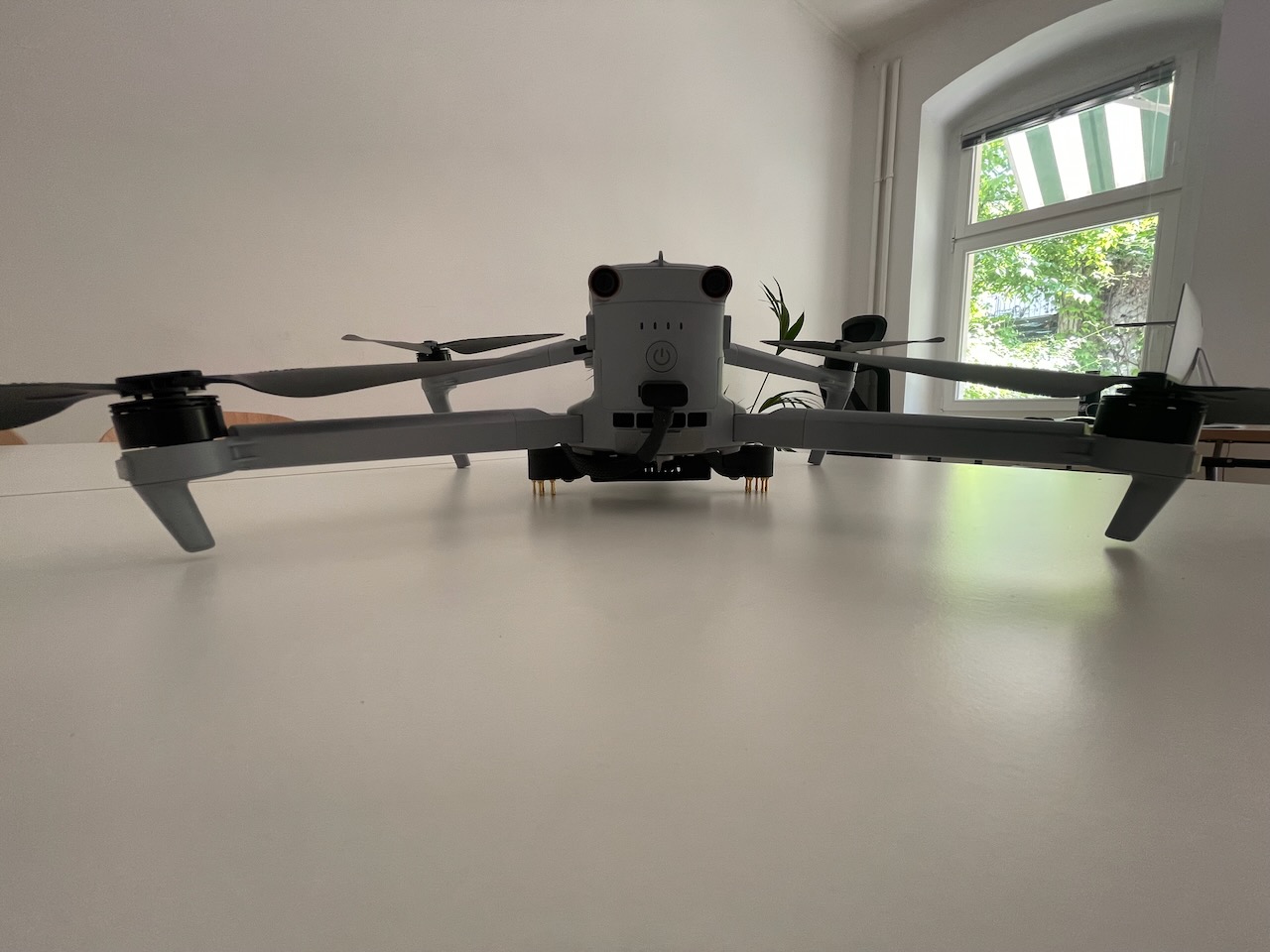

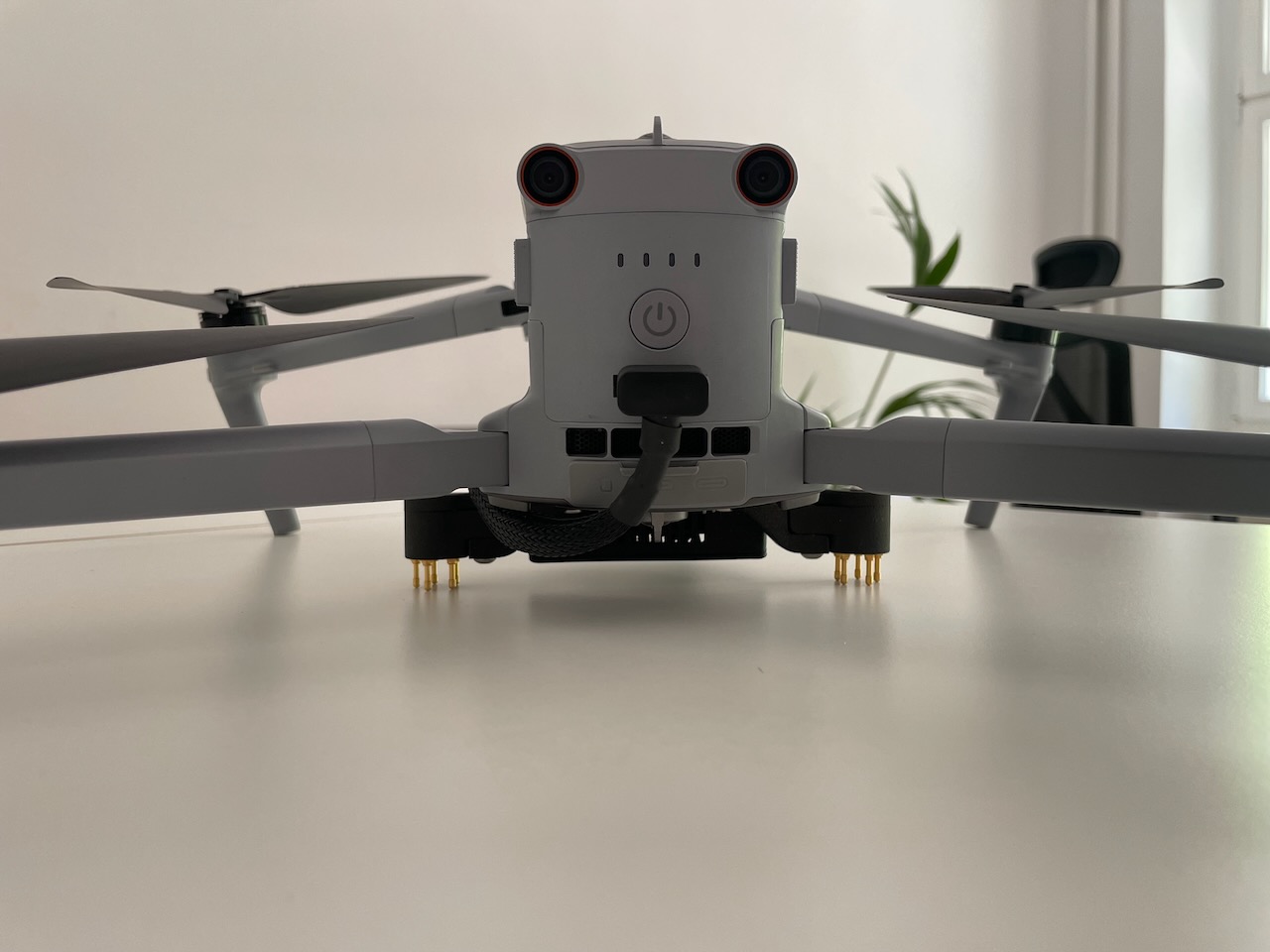

Figure 3.2 - Rear view of the installed Retrofit Kit
3. Test the Installed Retrofit Kit
